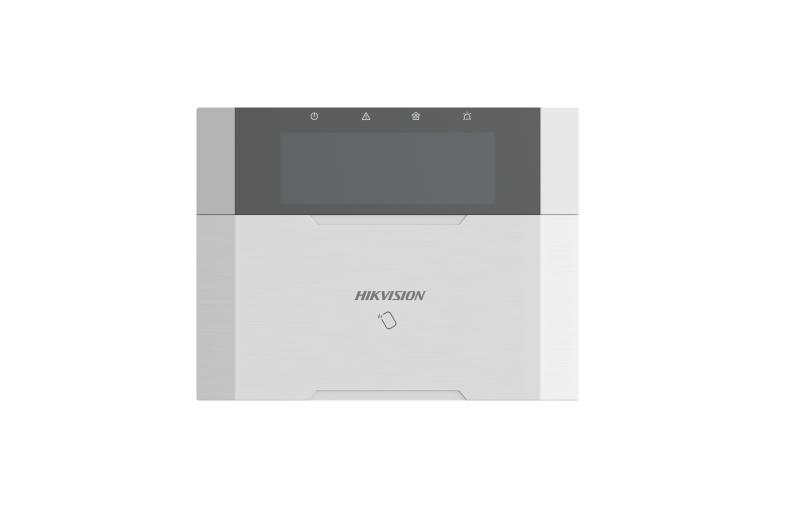

DS-PK1-LRT-HWB
Wired LCD Keypad
● LCD screen display
● Supports one-touch arm（Arming without password）
● Supports Fire/Panic/Medical alarm key
● Supports company name, phone number, time display
● Supports 2 on-board alarm inputs and 1 on-board alarm output
● Supports maximum 64 keyfobs -
DS-PKF1-WB
433MHz
AX PRO Series
Wireless Keyfob -

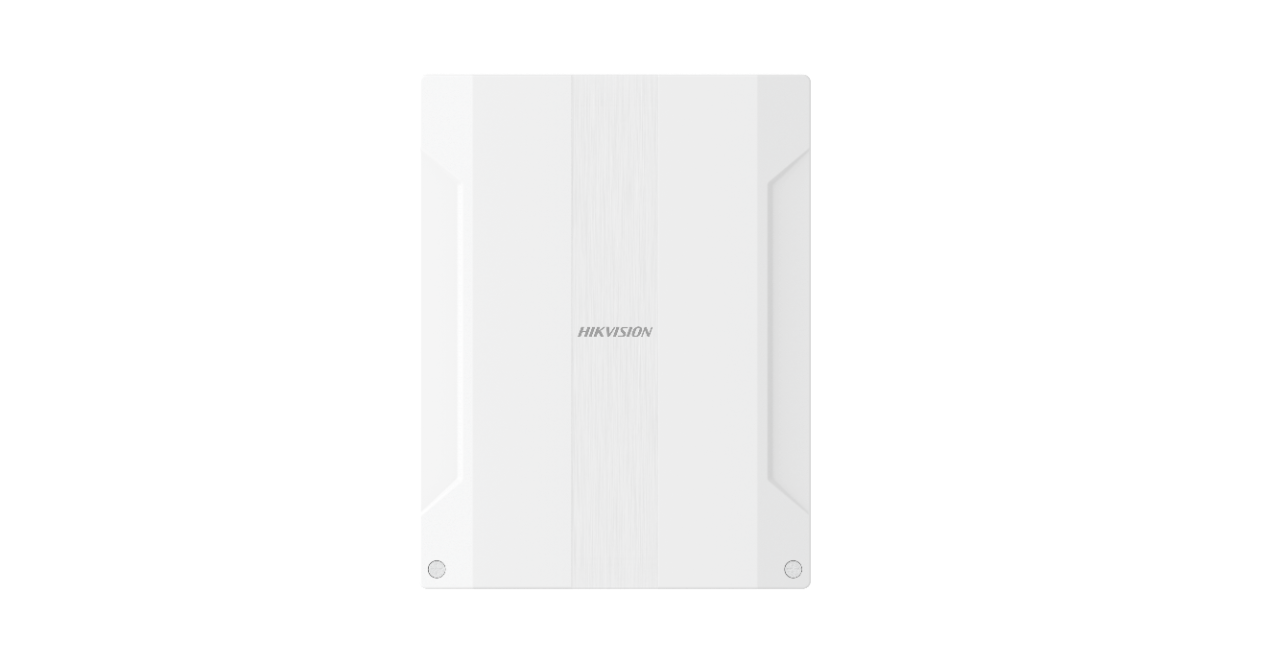

DS-PM1-I16O2-WB
433MHz
AX PRO Series
Multi-IO Transmitter -
DS-PM1-I8O2-H
Wired Input Expander（Cascade）
● 8 on-board wired zones
● Support 3EOL connection(Alarm：1KΩ；Tamper：1KΩ；Fault：2.2KΩ)
● Support zone alarm，tamper，masking，fault，short detection
● 1 power output for wired detectors
● 2 Speed-X bus, supporting wired input expander cascade mode -
DS-PM1-O1H-WB
433MHz
AX PRO Series
Wall Switch -
DS-PM1-O1L-WB
433MHz
AX PRO Series
Relay Module -

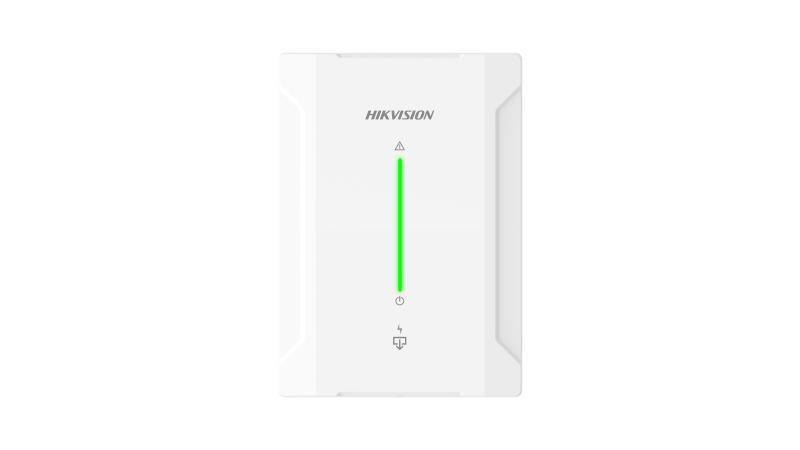

DS-PM1-O4H-H
wired expander
Supports 4 onboard power relays，each relay can handle current of up to 16A
· Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port -
DS-PM1-O4L-H
Wired I&O Expander
● 4 on-board low current relays, supporting 6-30V and up to 5A current
● 1 power output, maximum 500mA
● Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port -
DS-PM2-S(EU)
3G/4G Communication Module(EU)
● FDD-LTE B1/B3/B7/B8/B20
● Dual-Band UMTS/HSDPA/HSPA+B1/B8
● GSM/GPRS/EDGE 900/1800MHz -

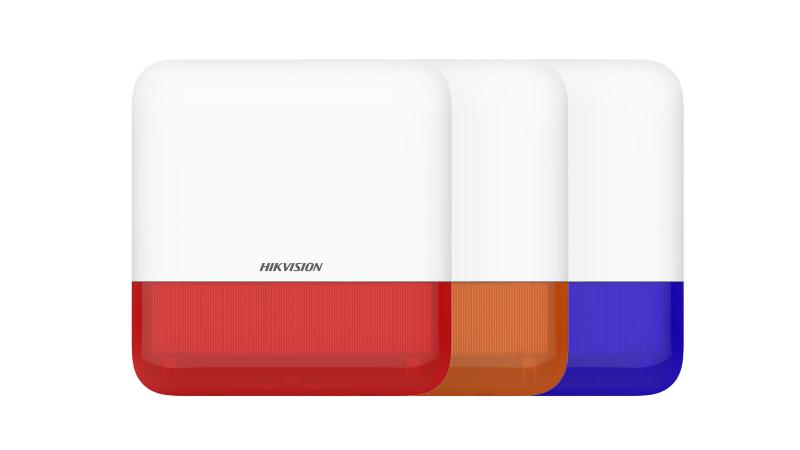

DS-PS1-E-WB (Red Indicator)
433MHz
AX PRO Series
Wireless Outdoor Sounder -
DS-PS1-I-WB (Blue Indicator)
433MHz
AX PRO Series
Wireless Indoor Sounder -
DS-PS1-R
Sounder
PC+ABS shell
Red/Blue colors for option
105dB at 30cm
IP54 Protective level
Sound and LED Flash indication separately
Easy installation with new designed structure
